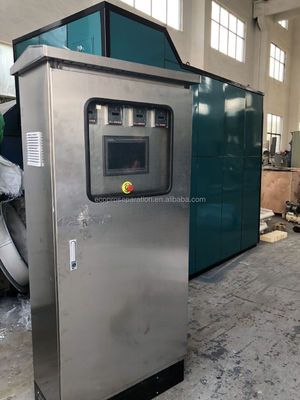

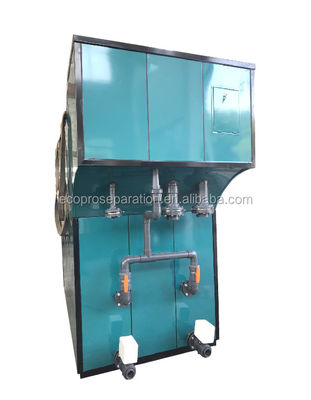

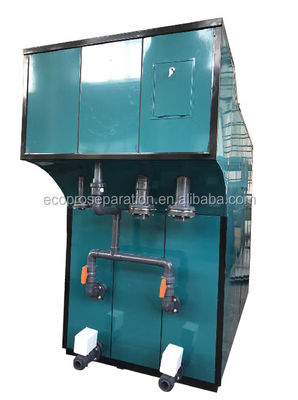

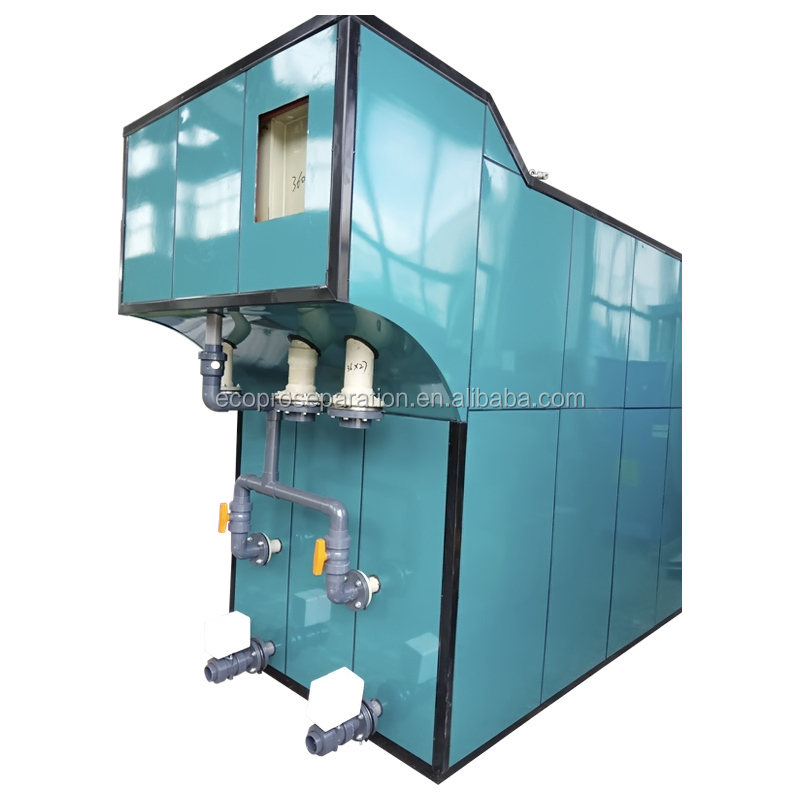

40m3/h Electrocoagulation Wastewater Treatment System 220V-380V

Большие изображения : 40m3/h Electrocoagulation Wastewater Treatment System 220V-380V

Подробная информация о продукте:

Место происхождения:	Шанхай, Китай
Фирменное наименование:	ECOPRO

Оплата и доставка Условия:

Количество мин заказа:	1
Цена:	$38,627

контакт

Подробное описание продукта

Производительность:	40 м3/ч	Масса:	2298 кг
Тип обработки:	Фильтрация	Власть:	3 кВт, 30 кВт, 20 кВт
Напряжение:	220 В, 380 В, 110 В	Емкость:	40 м3/ч
Масса электрода:	11500 kg	Пустой вес:	3500 кг
Операция "Вес":	31000 кг	Обработка способности:	1m3/h
Энергопотребление:	3 кВт/ч	Измерение:	10006501500 мм
Масса электрода:	650 кг	Пустой вес:	400 кг
Операция "Вес":	1500 кг
Выделить:	40m3/h electrocoagulation wastewater system , electrocoagulation wastewater treatment 220V-380V , industrial electrocoagulation system with warranty

Industrial Laundry Water Treatment Electrocoagulation Wastewater Treatment Equipment

Electrocoagulation Equipment Electrocoagulator Electrocoagulation Water Treatment

Electrocoagulation system is a wastewater treatment process that utilizes a metal hydroxide produced by a soluble metal anode during flocculation to remove contaminants from water. The anode material typically uses aluminum, iron and other readily available and inexpensive metals.

Technical Specifications

Treating Capacity	1m3/h
Power Consumption	3kw/h
Dimension	10006501500mm
Electrode Weight	650kg
Empty Weight	400kg
Operation Weight	1500kg

Electrocoagulation System Principle

Electrochemical reaction: Fe→Fe2++2e

Anodizing reaction: 2OH-→2[O]+2e→O2+2e, The nascent oxygen [O] has the same strong oxidation function as UV, H2O2 and O3.

Cathode reduction: 2H++2e→2[H]→H2, nascent hydrogen can break bonds, COD, chromophore functional groups and multi-chain health.

The above oxidation and reduction functions occur continuously on the plates.

Electrocoagulation System Features

Wide adaptability of power supply: 220V-480VAC range is available.

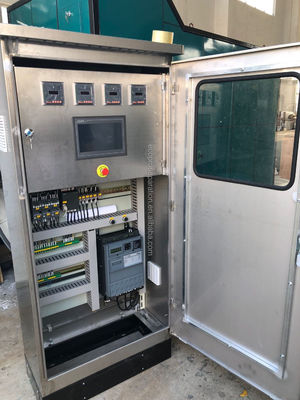

Safe and convenient: embedded isolated voltage circuit to ensure electrical safety; a variety of abnormal indications and protection (phase loss, overload, overcurrent, overvoltage, zero voltage, etc.).
Automatic control: can automatically detect the ion state in the water to adjust the current, voltage.
Energy saving: Fe(OH)2 and Fe(OH)3 are excellent coagulants. No need polymer is a major feature of this equipment.

Company Introduction

Shanghai Ecopro Environmental Engineering Co.Ltd., the flagship company was established in 2017, focuses on one-stop Water & Wastewater treatment equipments and Separation Service Environment. As a professional environmental engineering company, since its inception, we always adhere to the spirit of craftsmanship, to provide the industry with equipment and services and systematic solutions. Our products include static screen, rotary drum screen, polymer dosing system, DAF system, electrochemistry system, screw press, plate filter press, sludge dryer, Mutag Biochip, sodium hypochlorite generator and different kinds of pumps.
